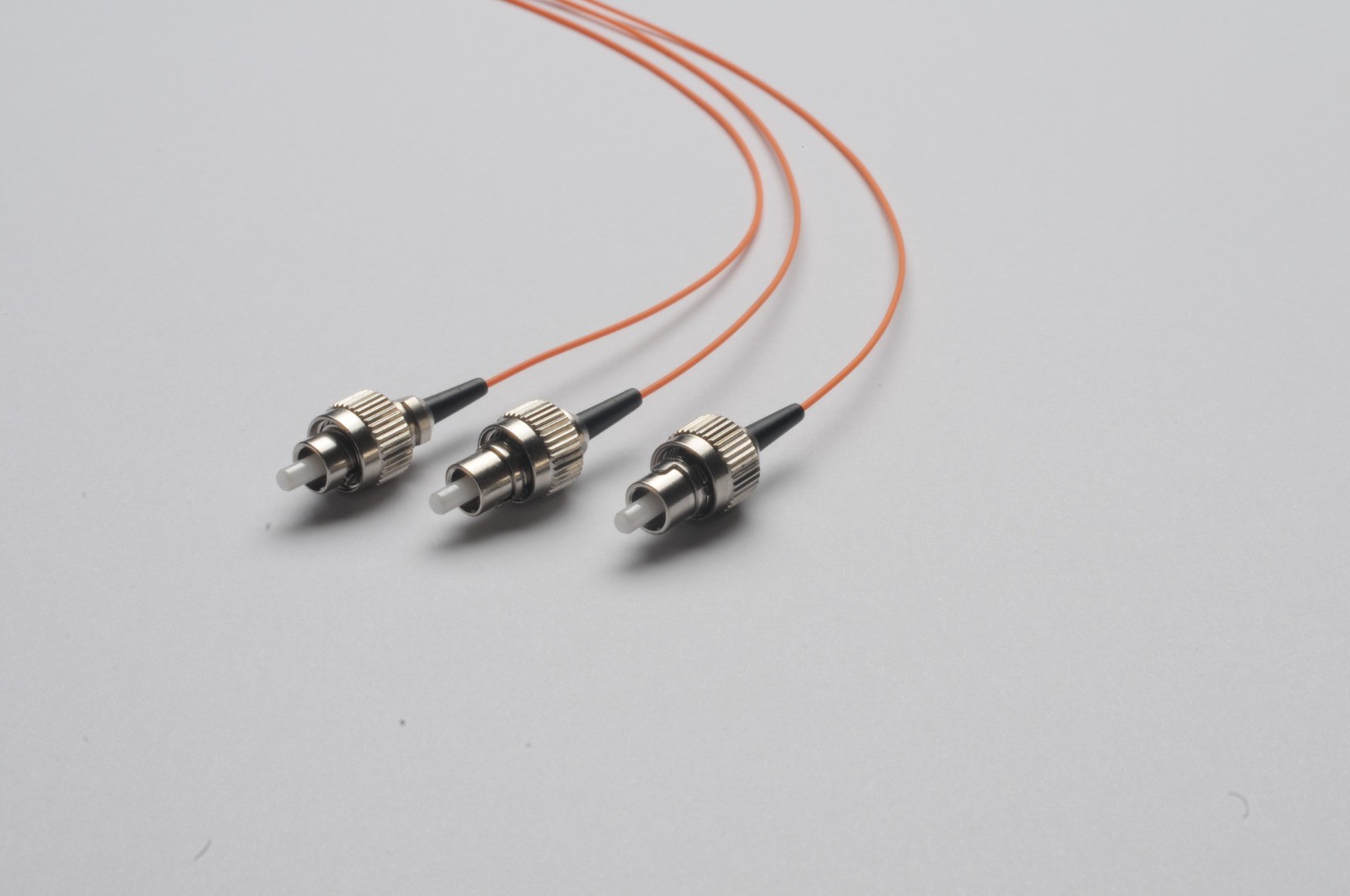

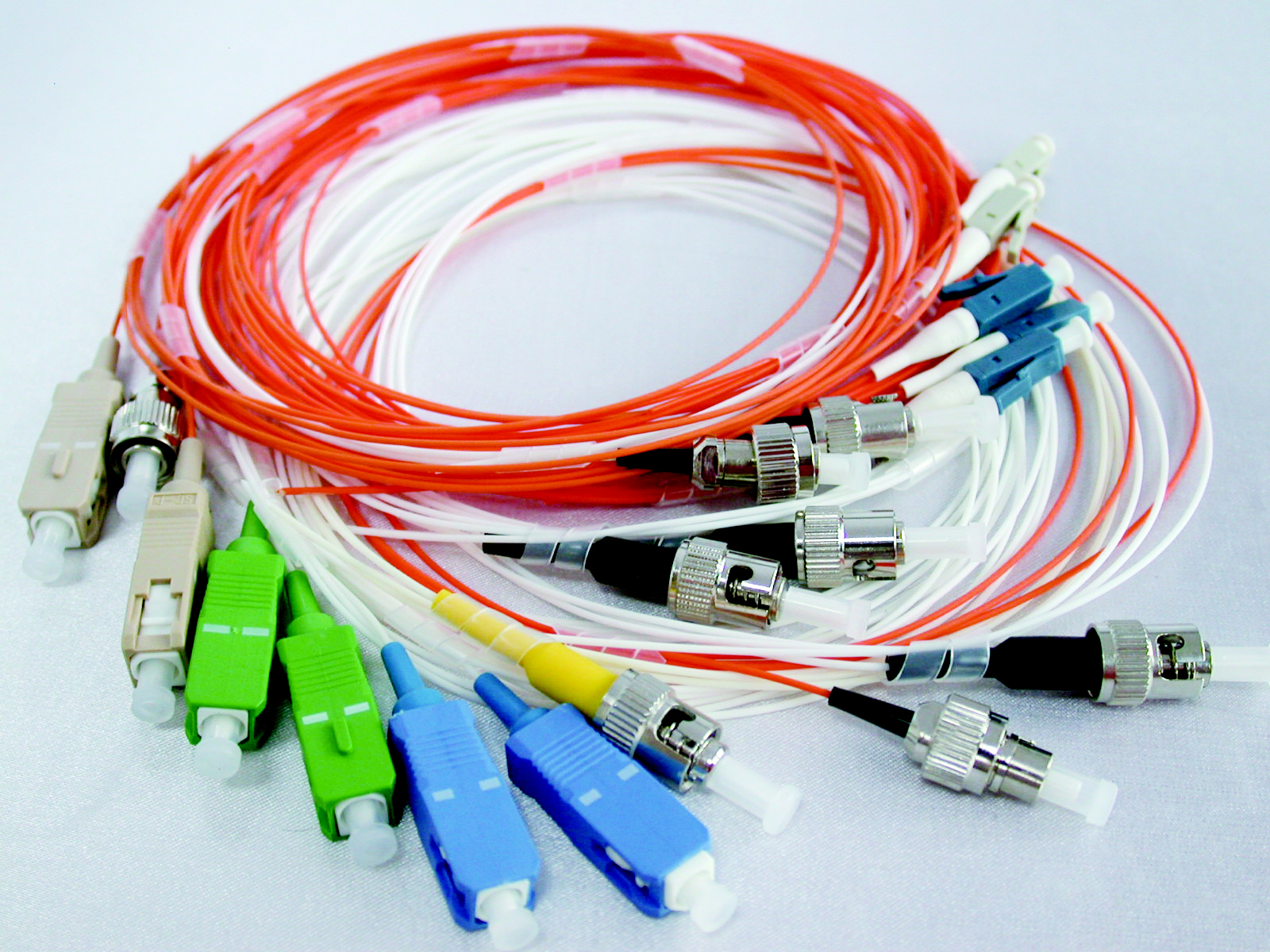

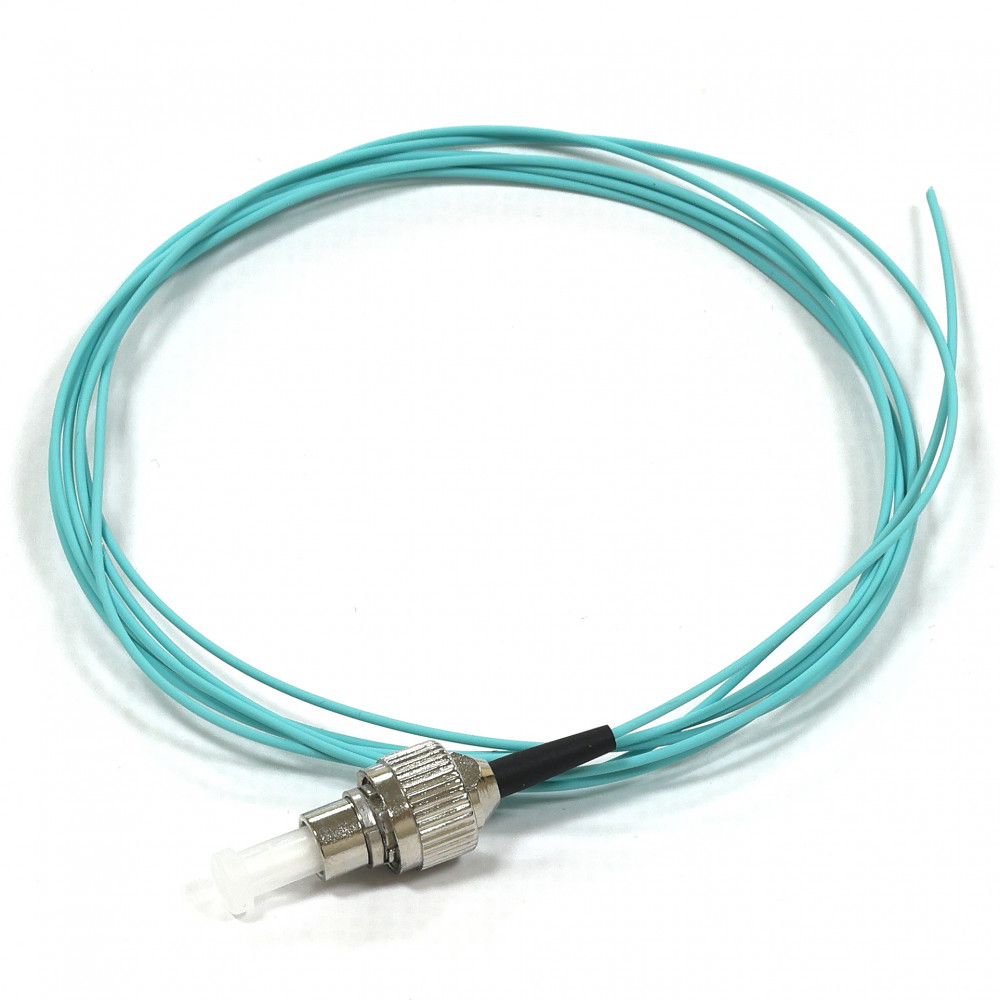

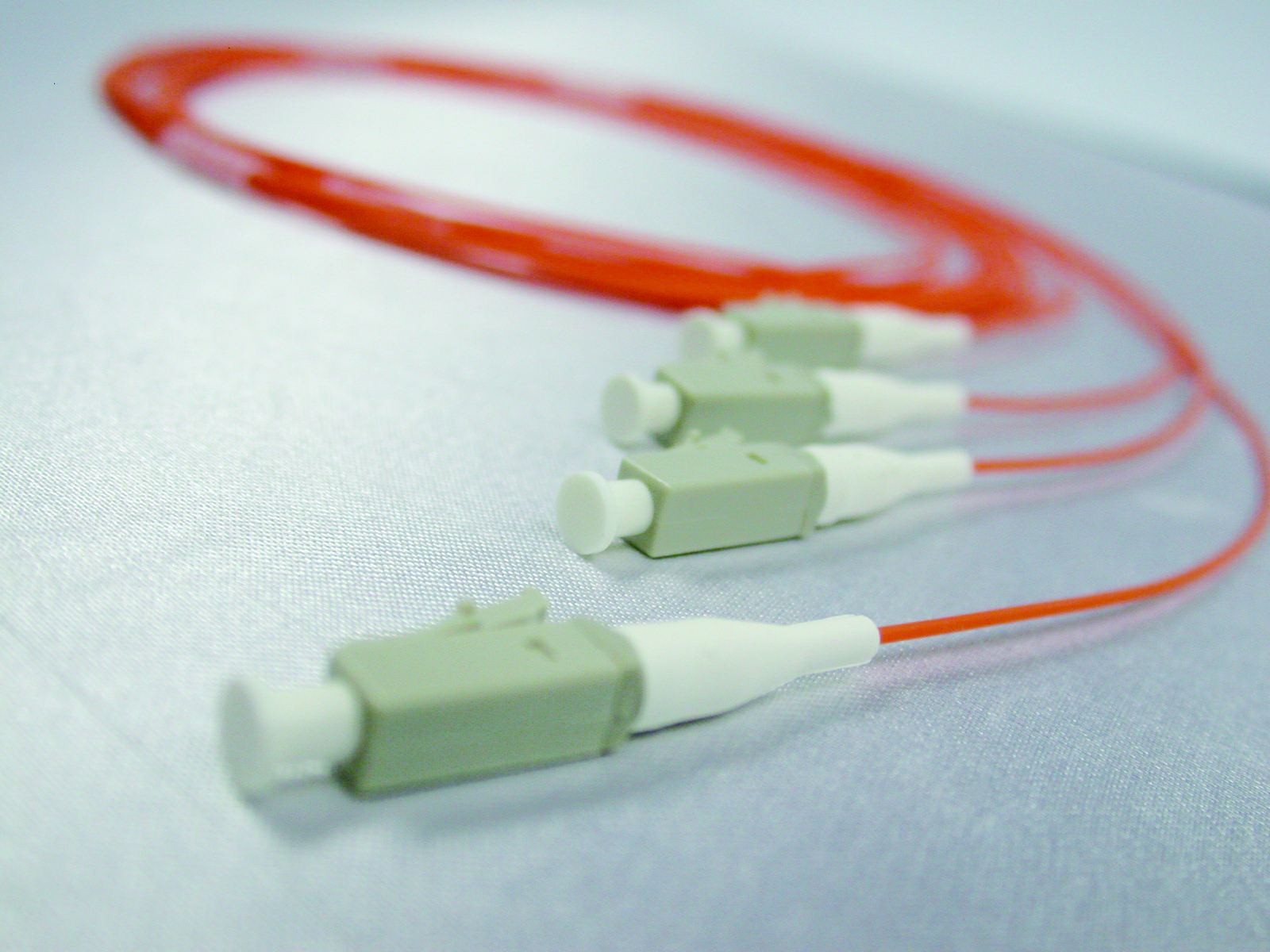

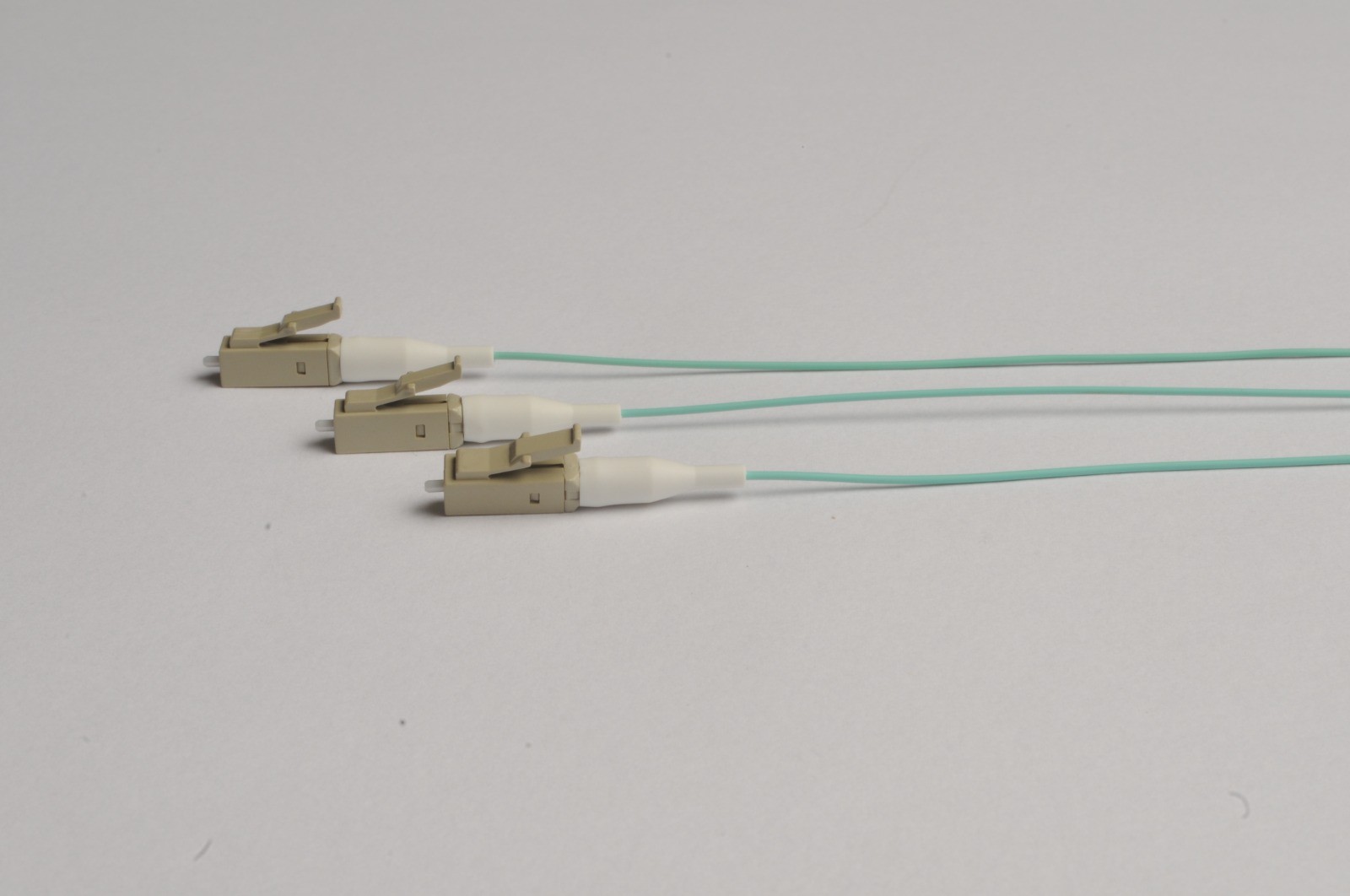

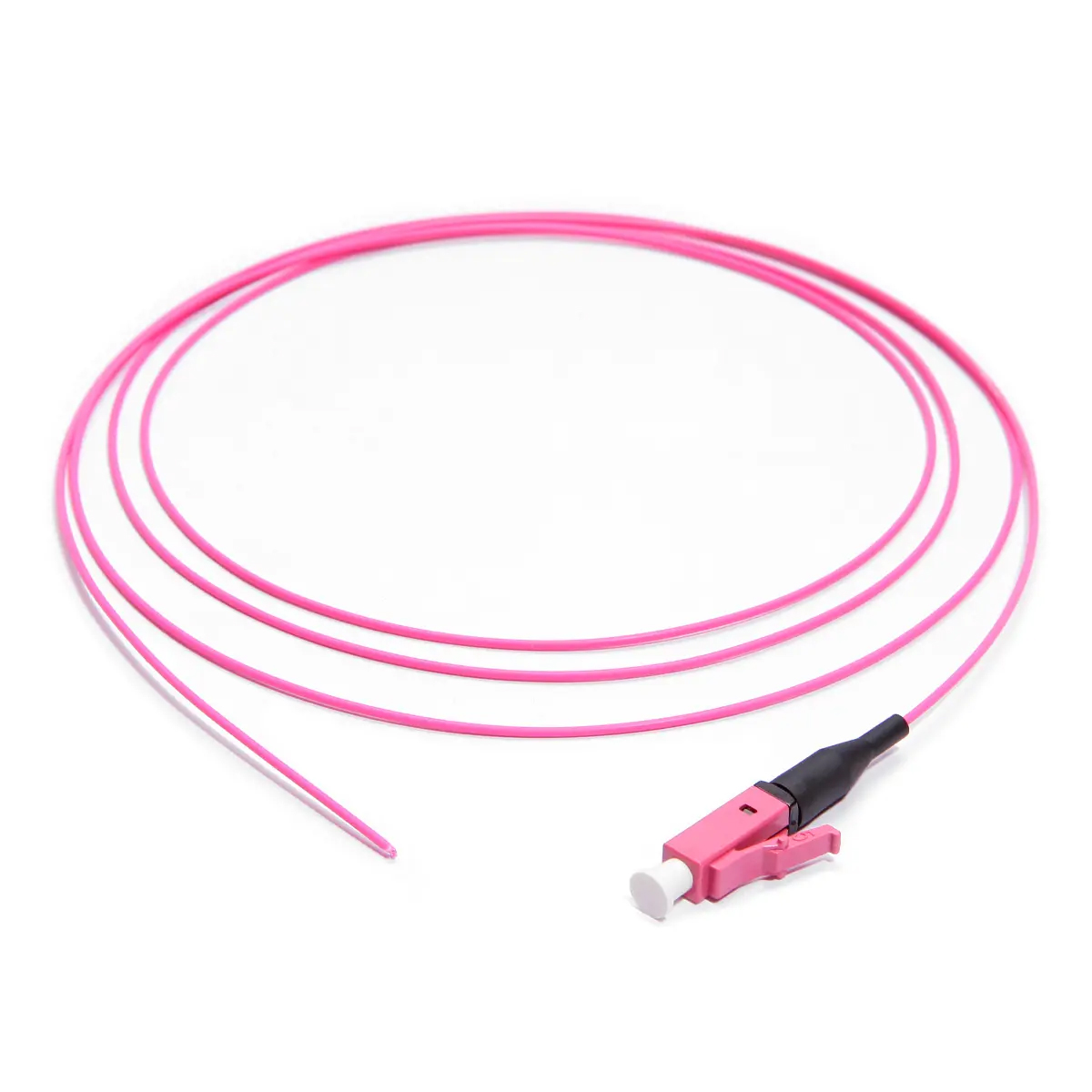

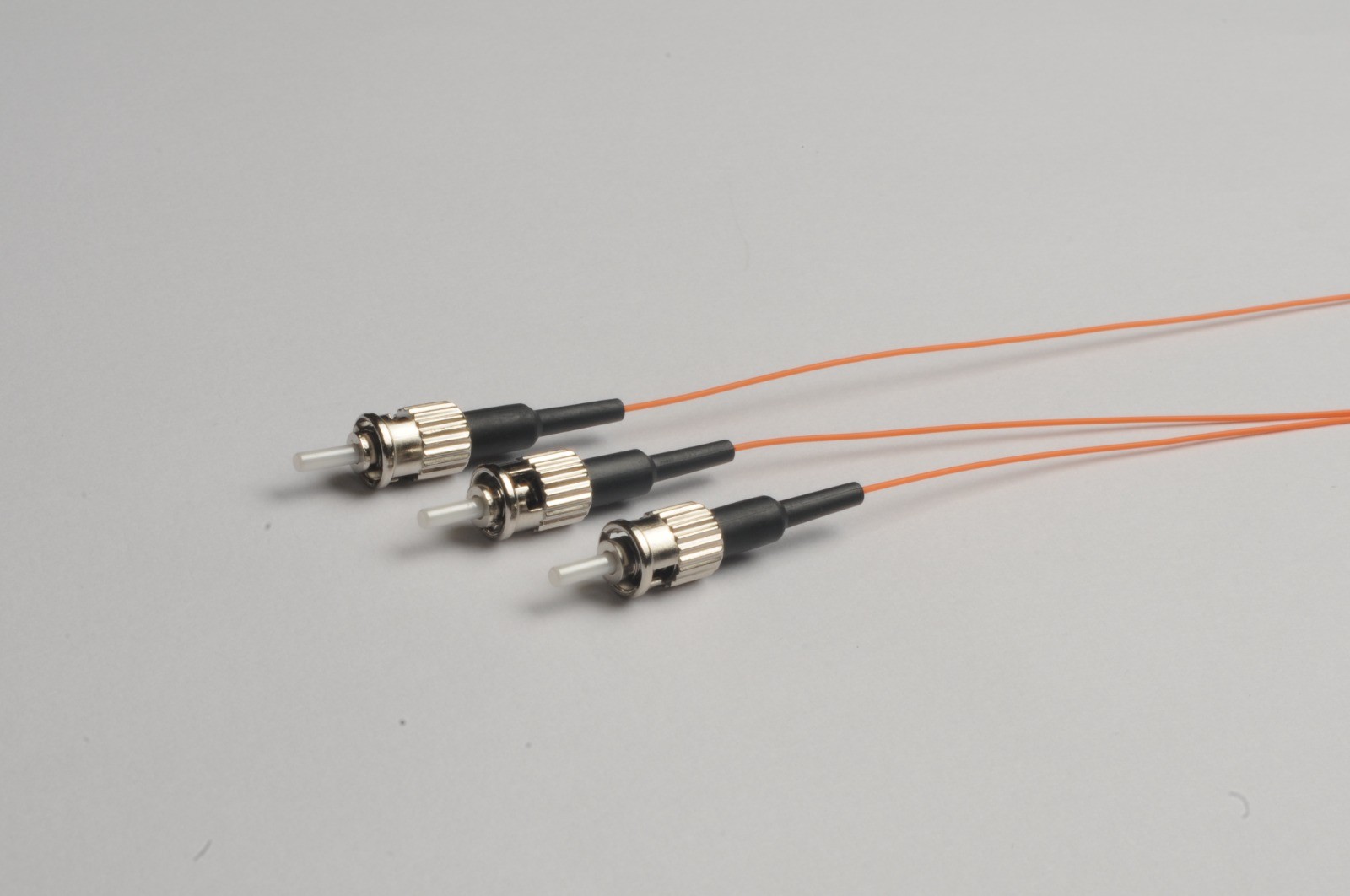

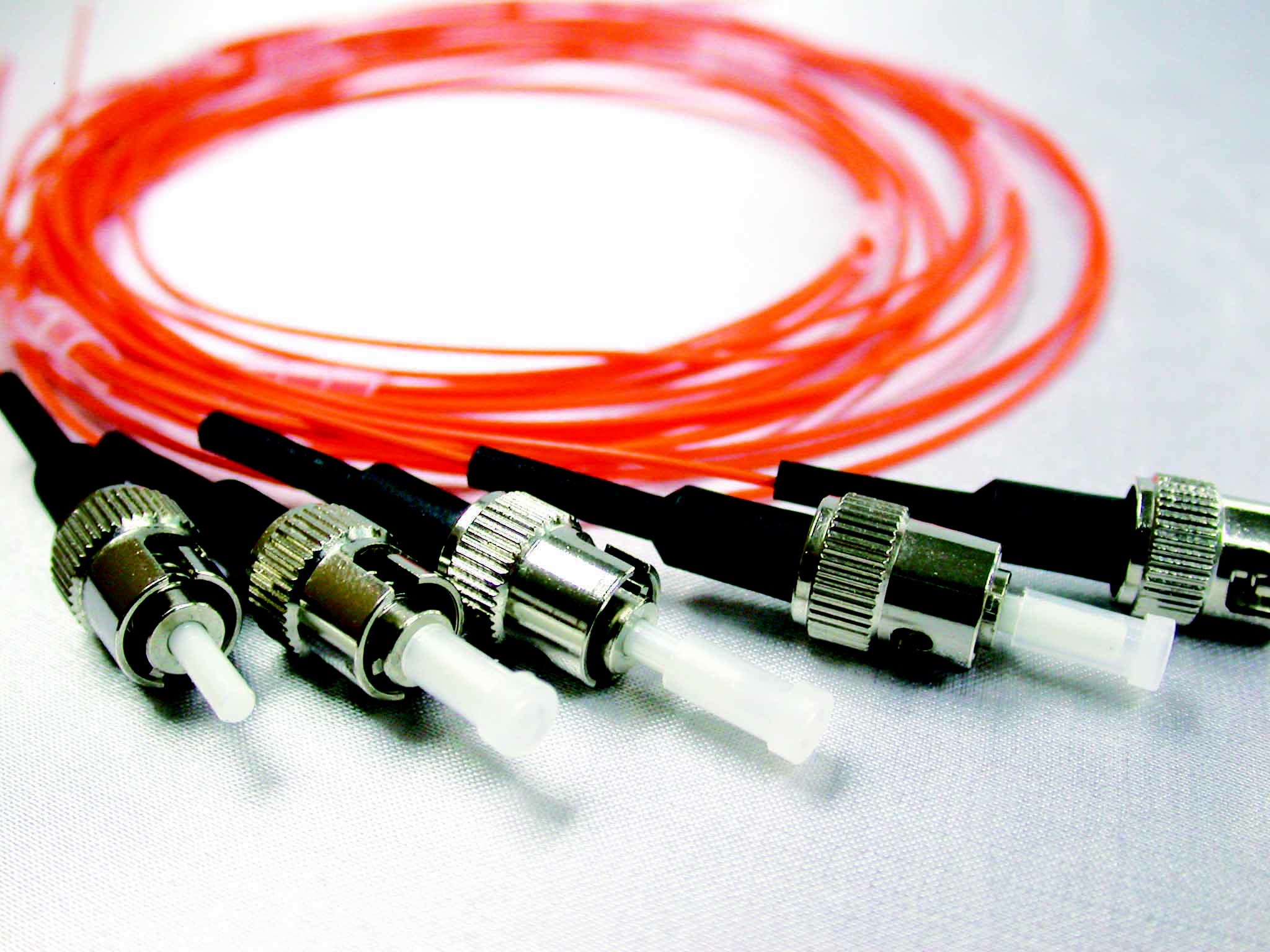

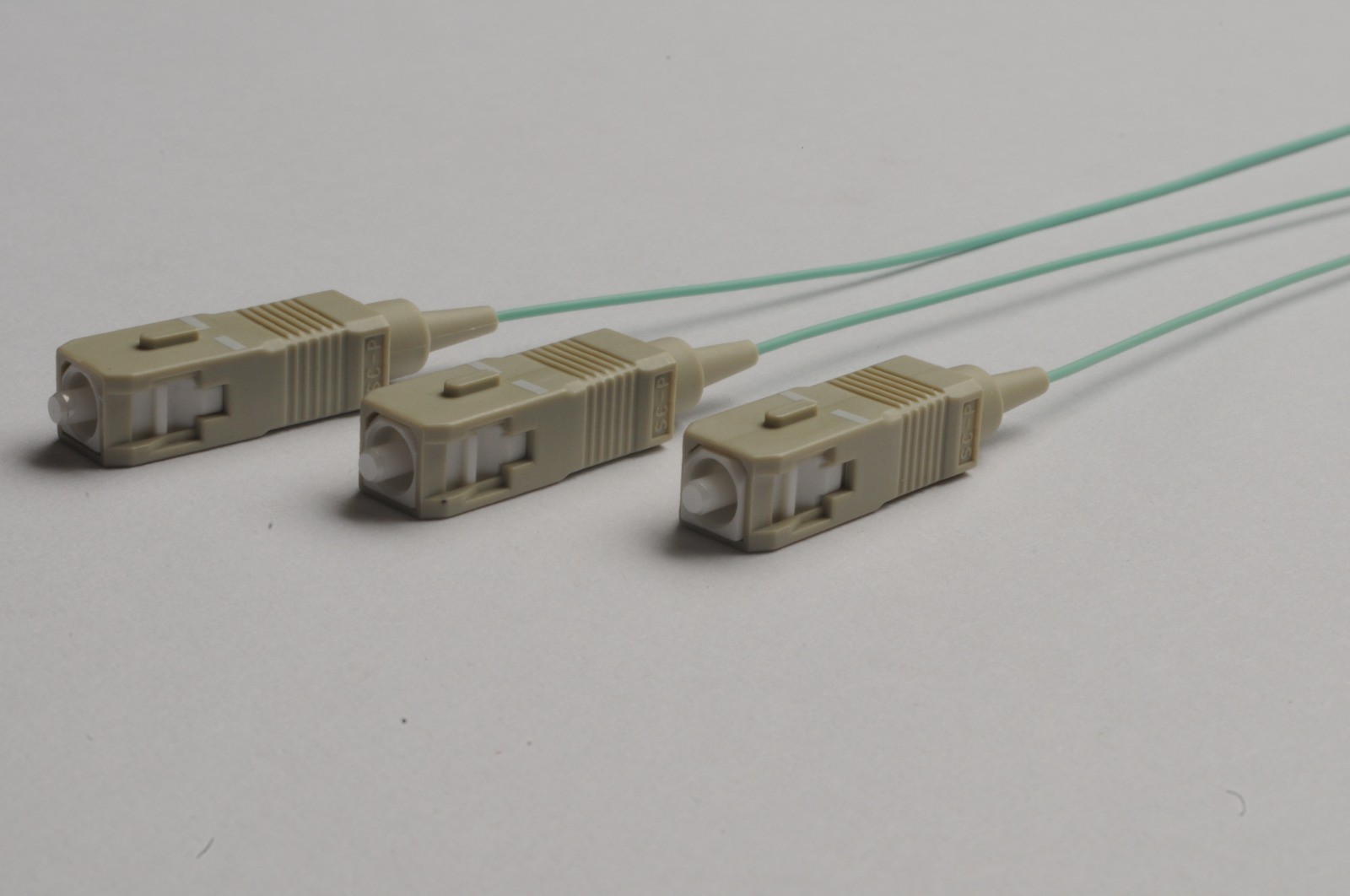

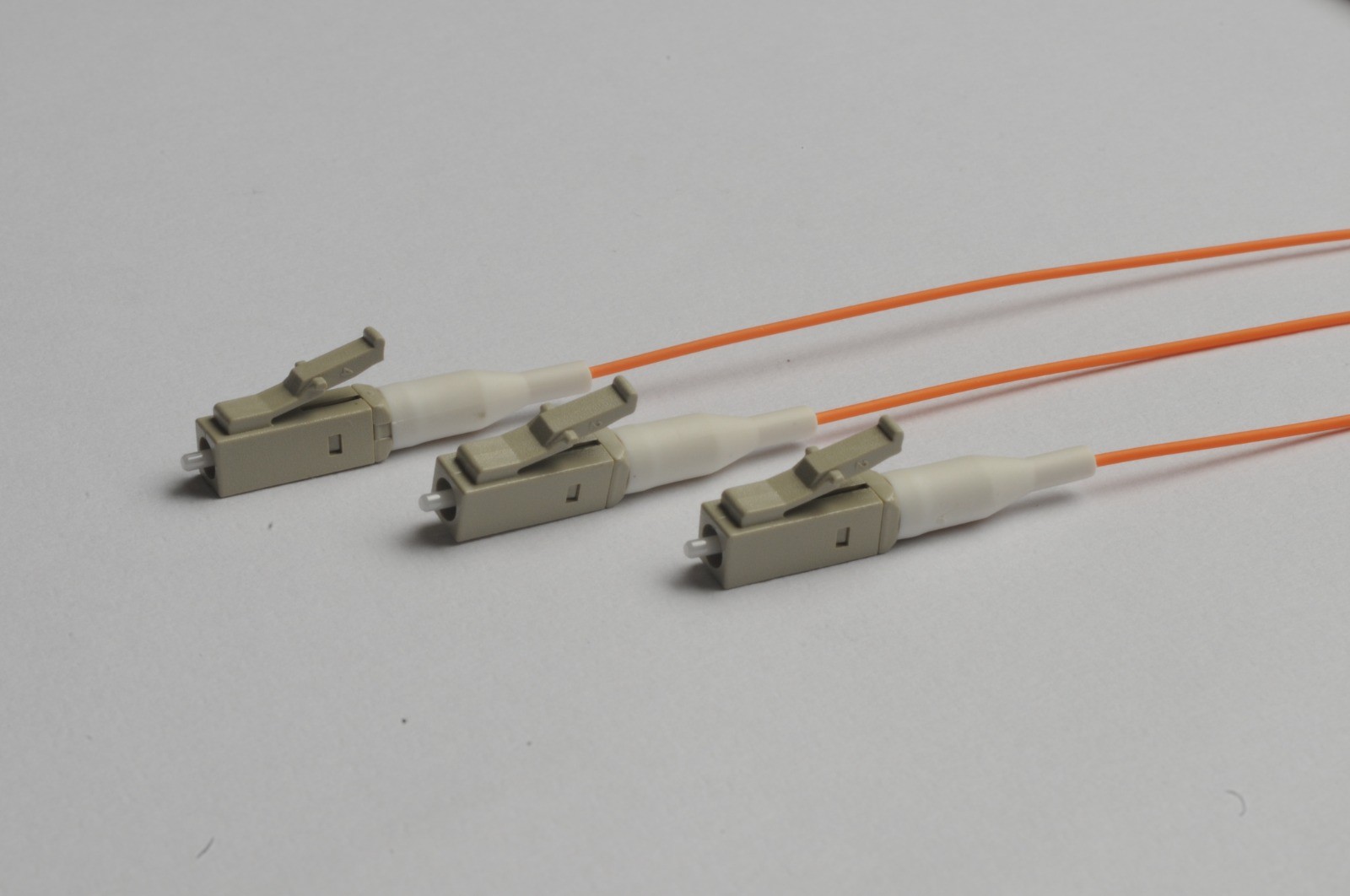

MULTIMODE PIGTAILS 62.5/125 (OM1) & 50/125 (OM2) & 50/125 (OM3) & 50/125MM (OM4)
ÖZELLİKLER VE UYGULAMALAR
• SC, LC, ST, FC, MU ve MTRJ konnektörleri
• LSZH veya PVC turuncu renkli kablo
• 900 μm sıkı tampon
• Esnek ve şeritlenmesi kolay elyaf belirli uygulama için Farklı bağlayıcı performans aralığı
• TΙΑ/ΕΙΑ 492AAAB, ITU-T G.651.1 IEC60793-2-10’a uygun OM3 fiber
• Hızlı ethernet ve GBE dahil ağlar
• Çok çeşitli telekom, datakom ve proses kontrol uygulamaları için idealdir
• Dahili inter - bağlantı
• Yamada tekrarlanan işleme uygundur
• RoHS ile uyumludur
FEATURES & APPLICATIONS
• SC, LC, ST, FC, MU and MTRJ connecters
• LSZH or PVC orange colour cable
• 900 μm tight buffer
• -Flexibe and easy to stripe fibre
• Different connecter performance range for specific application
• OM3 fiber to TΙΑ/ΕΙΑ 492AAAB, ITU-T G.651.1 IEC60793-2-10
• Compatible with RoHS
• Networks including fast ethernet and GBE
• Ideal for a wide range of telcom, datacom and process control applications
• Internal inter - connect
• Suitable for repeated handling in patch
CABLE SPECIFICATION
| Characteristics | Simplex | Conformance |
| Cable Material | LSZH and PVC | LSZH and PVC |
| Strength member | Aramid | Aramid |
| Crush (N) | 1000 | 1000 |
| Operating temperature (oC) | -40oC to 85o C | -40 oC to 85o C |
| Cable Retention | 20 Lbs | 20 Lbs |
FIBRE SPECIFICATION
| Characteristics | |
| Attenuation (dB) / km | 2.6 @ 850 nm / 0.8 @ 1300 nm |
| Bandwith OFL (MHz x km) | 1500 @ 850 nm / 2500 @ 1300 nm |
CONNECTOR SPECIFICATION
| Optıcal performance | Multimode | Conformance |
| IL Max /Master / (Acceptance) | 0.20 dB | IEC 61300-3-4 |
| Ave/Master | 0/18 dB | IEC 61300-3-4 |
| Ave/Random | 0/18 dB | IEC 61300-3-34 |
| Return Loss UPC | ≥ 35 dB | IEC 61300-3-6 |
| Ferrule Material | Ceramic | |
| Housing Material | Composite |
